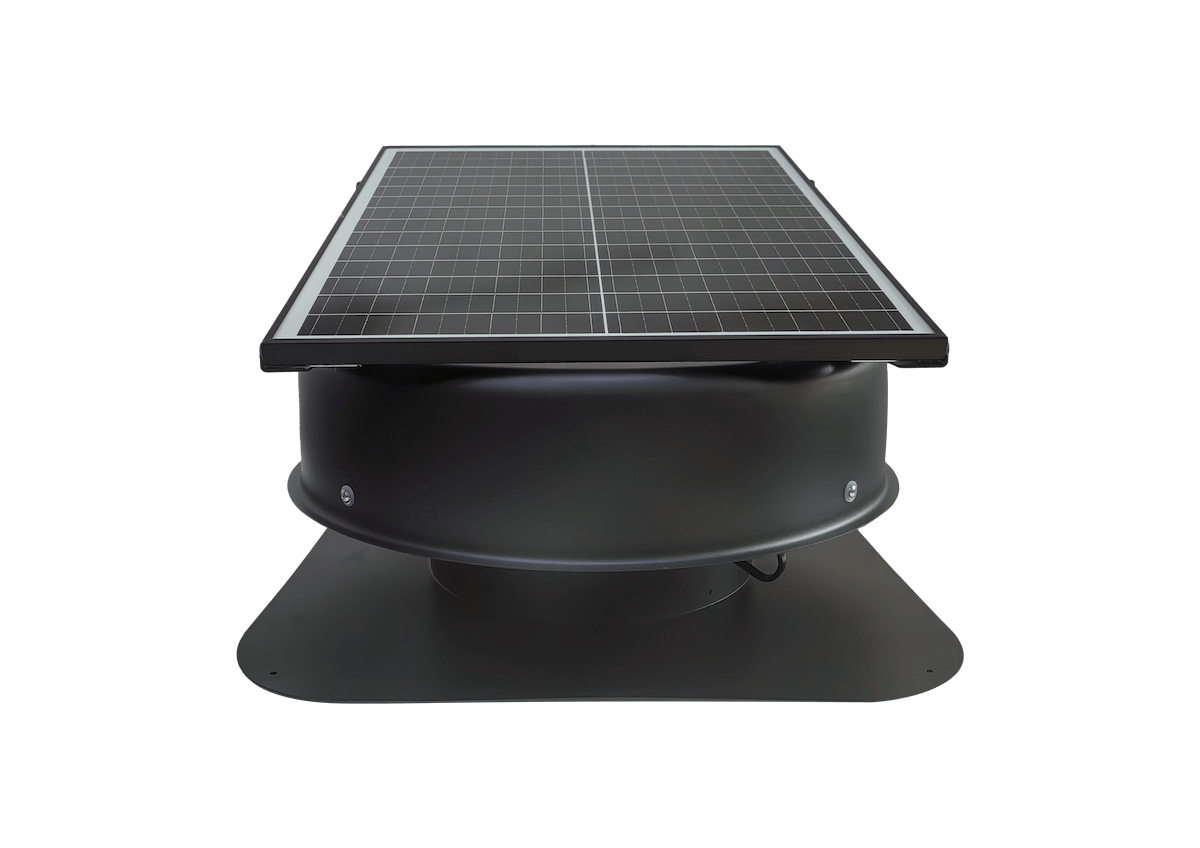

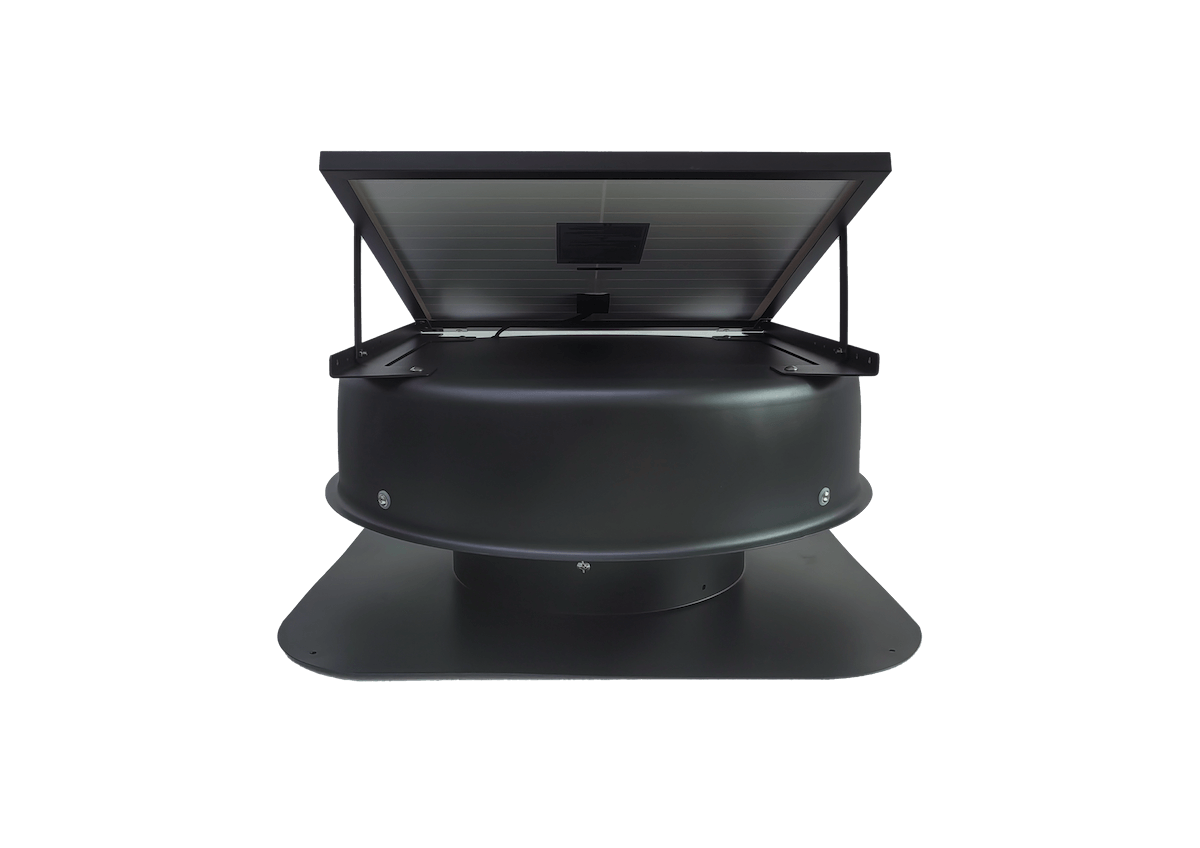

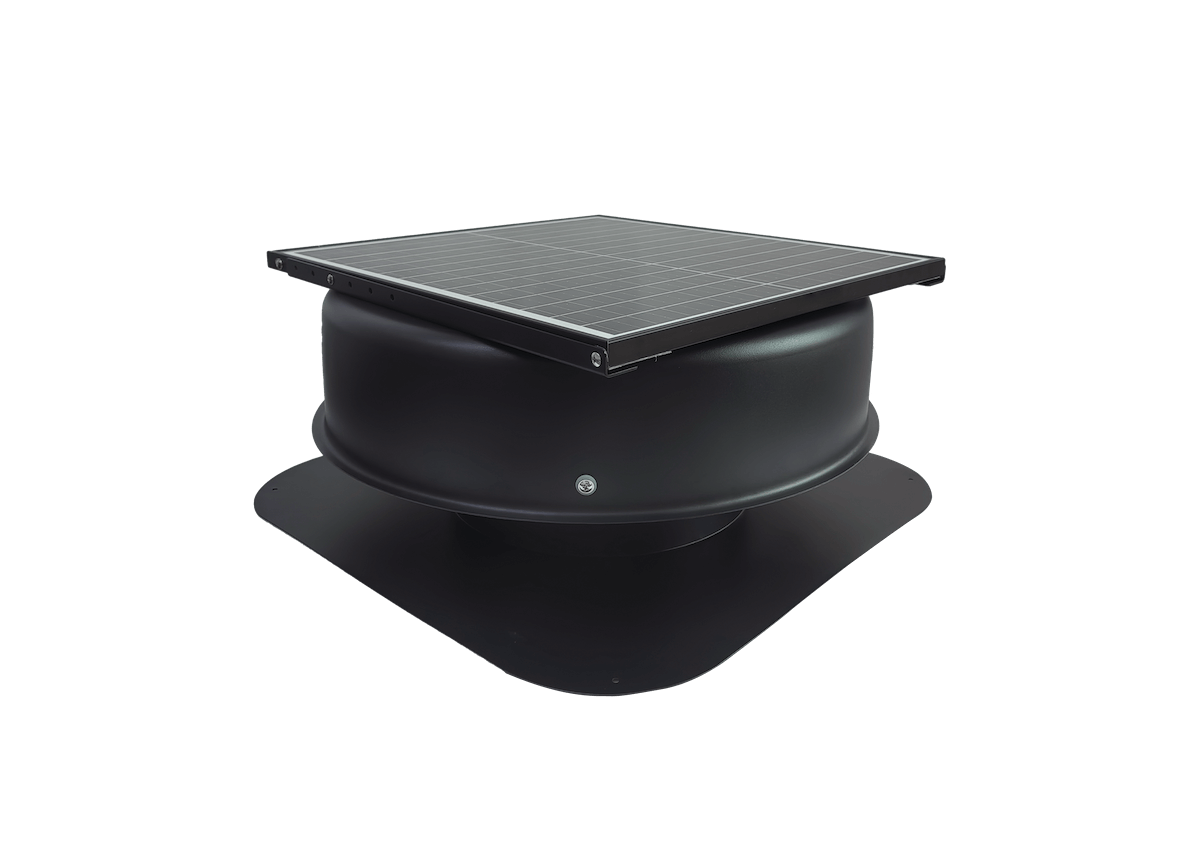

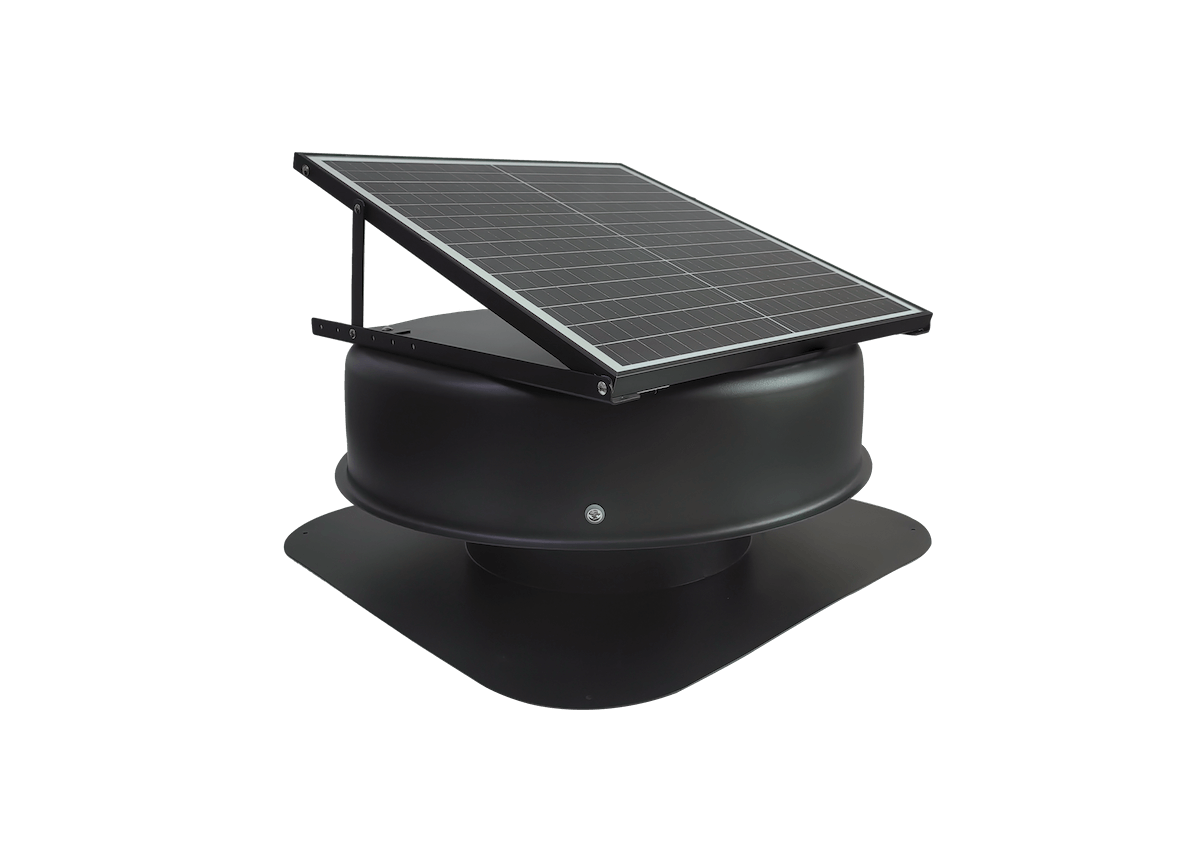

Solar Roof Ventilation Fan 320MM V4 Wireless

Home / Solar Ventilation

The V4 wireless remote-control model allows you to control the functions of the fan. You can turn the fan on and off, adjust the fan speeds ¼, ½, ¾, full speed, set timers and force the unit on/off when the temperature is above or below the 25°C auto shutdown. Australian summers continue to get hotter and so do our homes. A great way to make your home or business cooler in summer is to use solar roof ventilation like the SolarKing solar fan. Roof temperatures in Australia during summer often reach 50 to 70°C and the best way to reduce these high temperatures in to install the SolarKing roof fan Many homes already wind driven “whirly birds” installed on roofs. Whirly birds rely on highs winds to produce any benefits and even then they only move around 100CBM per hour for each unit. Compare this to the SolarKing that moves 2100CBM per hour, there is no comparison. The SolarKing solar exhaust fan uses the sun and only starts working when your roof space reaches 25°C so as not to remove warm air in the winter when it is needed to keep your house warm (whirly birds operate regardless of the temperature. When the sun disappears in the evening the SolarKing will stop ventilating but at this time the roof is now cooling naturally with the reduced temperature as the fan has been extracting heat during the day. Have you ever noticed how the lower level of a 2 storey home is always cooler than the upper level? This is due to the upper storey blocking extreme heat from the lower level. The SolarKing solar roof ventilation fan does the same thing, the fan replaces the hot air inside your roof with the cooler outside air. This greatly lowers the extreme heat in your roof pushing into to your living space. You can also add closable vents in the ceiling of your home that can be opened when a cool change comes through to draw the cooler air in through your open windows and doors. Normally you would position these vents near the centre of your home to extract maximum hot air. This air is then extracted along with the hot air in your roof by the SolarKing solar fan. If are looking to make a big change to your comfort levels this summer and looking to reduce high energy costs of using air conditioners. Let the free power of the sun to do the work for you and use you air conditioning a great deal less. This latest V4 wireless model carries all the updates from the V3 model that has a DC power connection so you can connect the optional 15V/240V AC power supply to let the fan operate after the sun goes down. The unit will switch to the optional power pack automatically and when the solar input level increases again the unit will switch back to solar operation. The unit will still turn off automatically when the temperature drops below 25 degrees. The V4 also carries over the constant speed motor to prevent any sudden increases and decreases in fan speed. This new V4 wireless model, now has last setting memory without the optional power supply being connected. Anti mould function, the unit will automatically power up during the day for 15 minutes to ventilate the roof. The V4 model now has electroplated steel body and brackets along with the existing aluminium flashing and aluminium fan cap, fasteners are stainless steel.

Advantages

Solar Whiz
Keep Your Home Comfortable

In the hot Australian summer the SolarKing Exhaust Fan extracts the dry and hot air in the roof. 20x more air than a wind driven Whirly Bird and can reduce roof temperatures by up to 30°.

During the cooler months, the thermostatic control of SolarKing Exhaust Fan prevents heat loss and retaining much needed warmth unlike whirly birds that continue to run.

SolarKing Exhaust Fan
Save Your Energy

The SolarKing Exhaust Fan consumes free solar energy, which means no running cost ever.

Also by reducing your roof temperature, your reliance on air conditioning will reduce and lower your energy bills.

SolarKing
Easy Installation and Superior Performance

The SolarKing Exhaust Fan can be self-installed or you can use one of our approved installers to do the job for you. Just a 320mm opening in the roof will be required.

The brushless DC motor makes the operation quiet and assures the motor will have long life. Being brushless it is also far more efficient compared to other motors so the performance is better.

Features

  • Increase comfort levels in homes and work places
  • Reduce air conditioning costs
  • Extracts 20x more air than a “Whirly Bird”

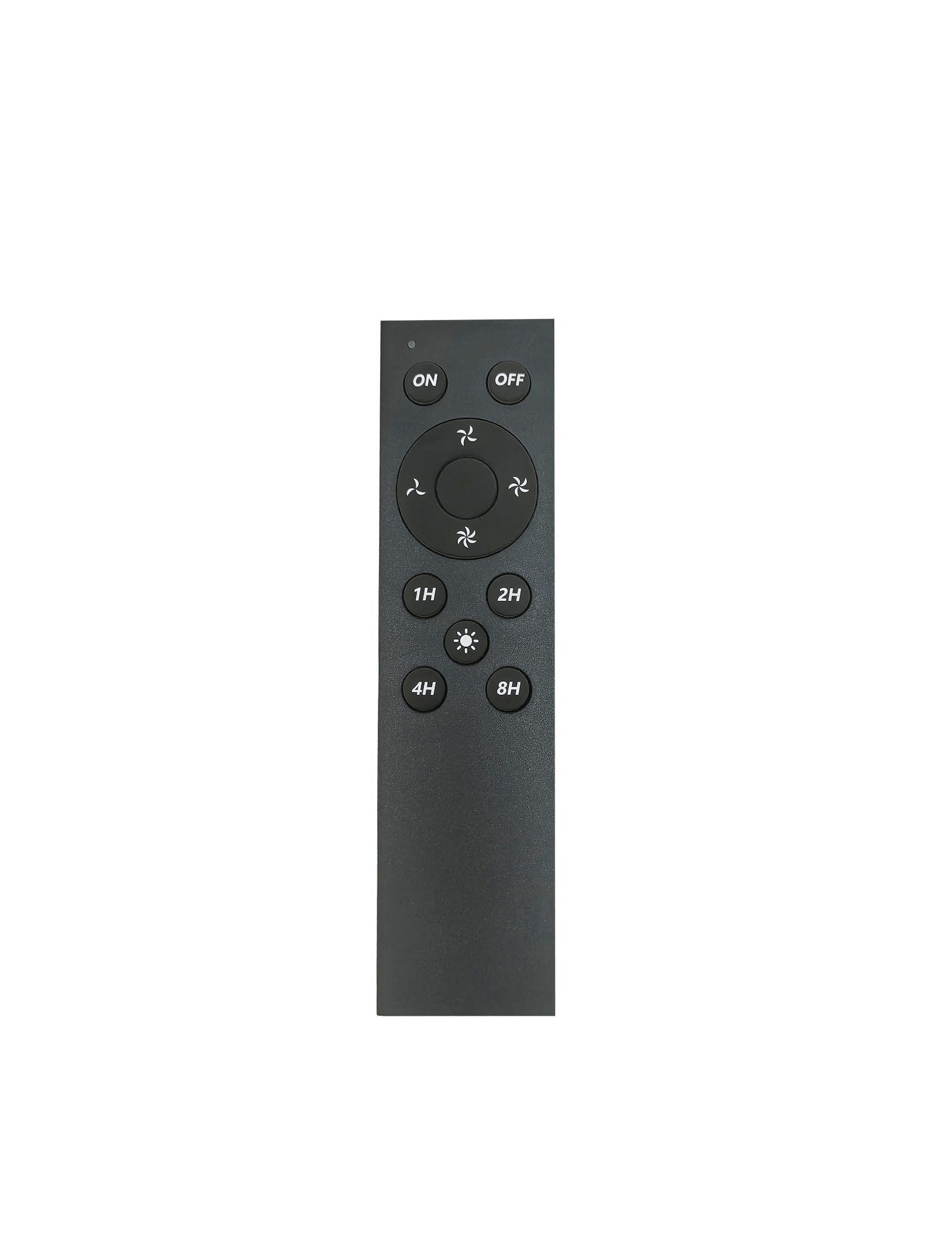

  • Wireless RF Remote control with 20M range, control on/off, set speed, set timers and force the unit on
  • Last setting memory without the optional power pack connected

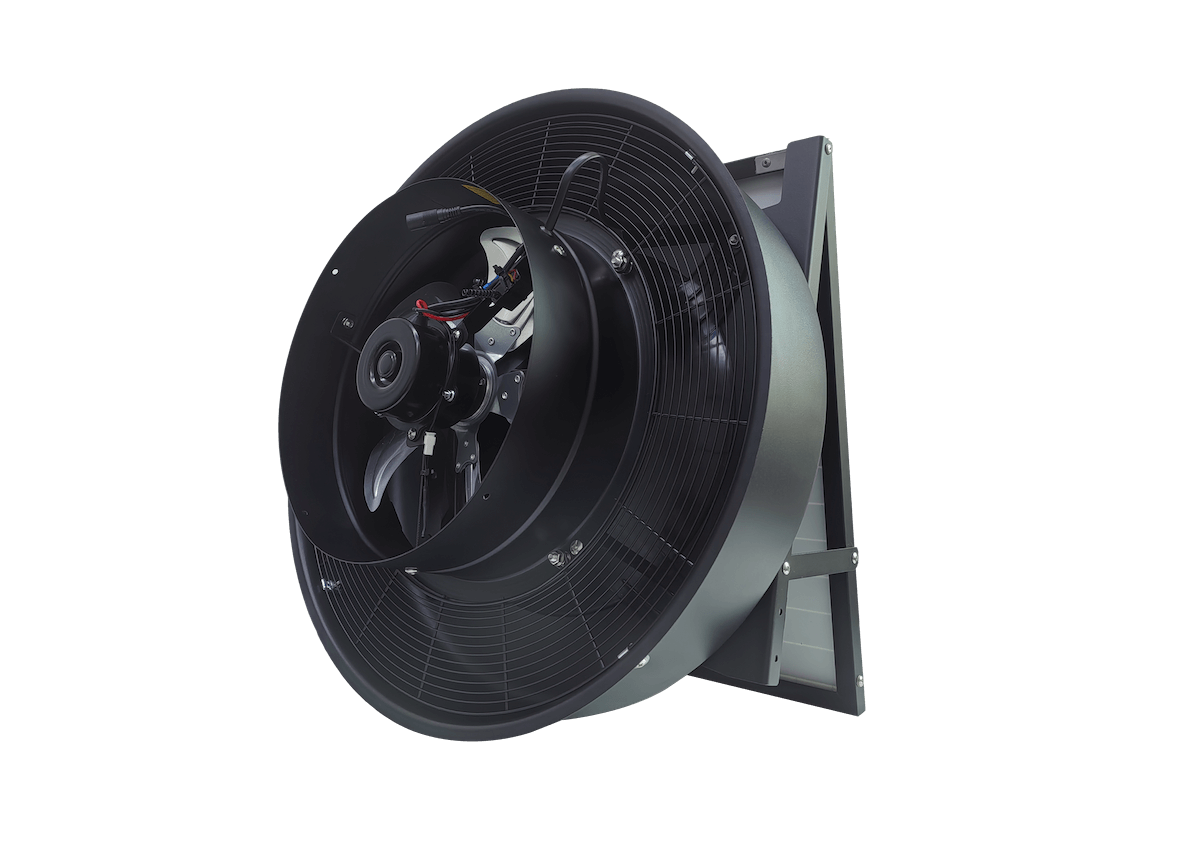

  • Free airflow design including air deflection cone to allow the unit to extract air more efficiently than other models
  • Reduces roof temperatures by up to 30°C
  • Solar Powered with DC power cable to connect to the optional 15V/240V power pack, the unit can continue to run when the sun goes down
  • Thermostatically controlled means no heat loss during winter

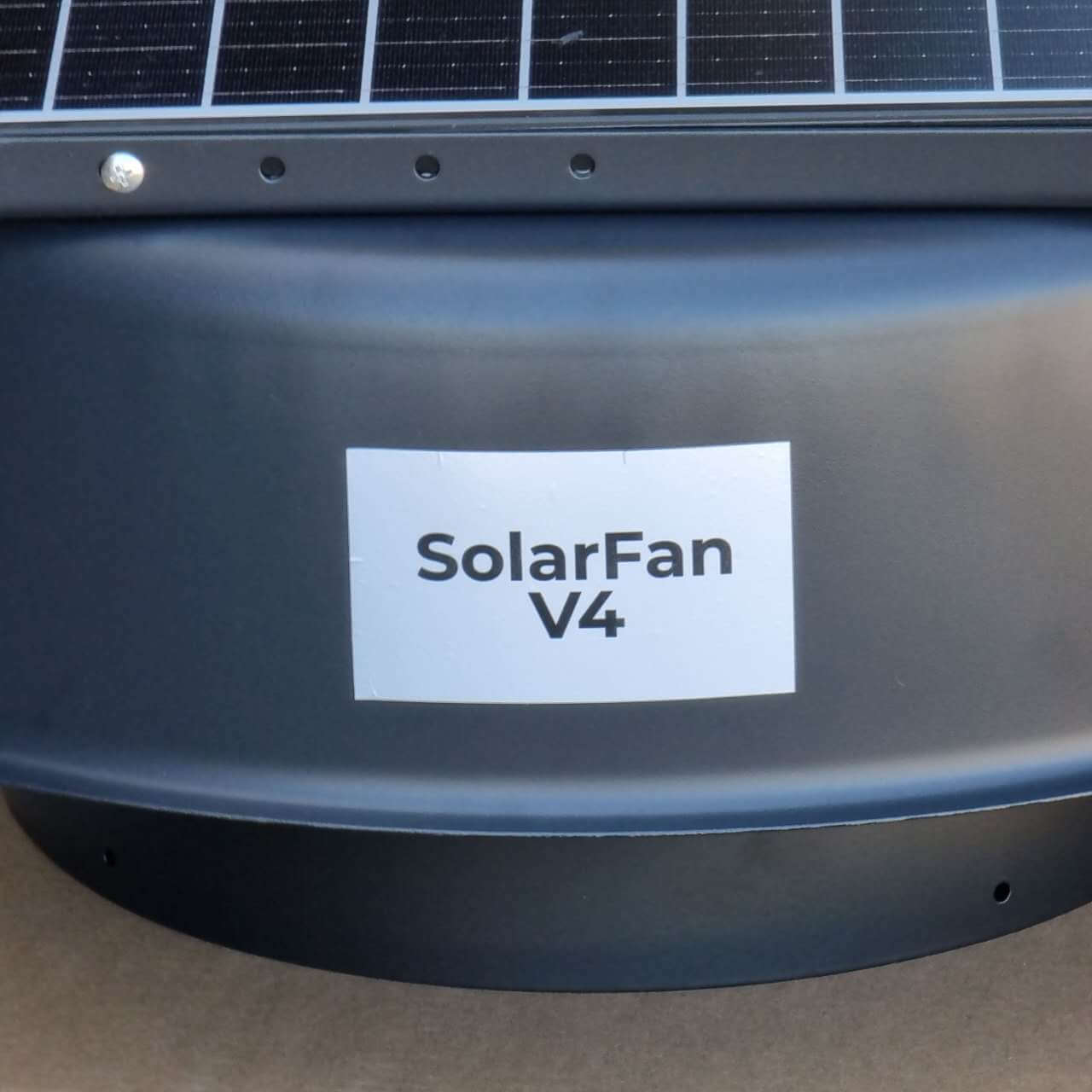

  • V4 design carries the updates of the improved V3 design Brushless DC motor with a constant speed design
  • Aluminium top and flashing and V4 model has electroplated steel body, steel brackets and stainless steel fastners
  • Easy installation, no electrician required
  • Automatic anti mould function
  • Improves efficiency of ducted air conditioning systems by reducing the extreme heat penetrating ducting.
  • Lightweight design also assists easy installation
  • SolarKing is Australian owned and operated
  • Suits tile, Colorbond and flat roofs
  • 3 Year Warranty

Specifications

Model: 320MM SRVFW V4 Wireless

Capacity: 2100CBM Per Hour

Motor: 35 Watts, 6-19VDC, 1600RPM Max, Brushless motor with double shielded ball bearings

Solar Panel Type: Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass

Solar Panel Output: 42 Watts, 15VDC

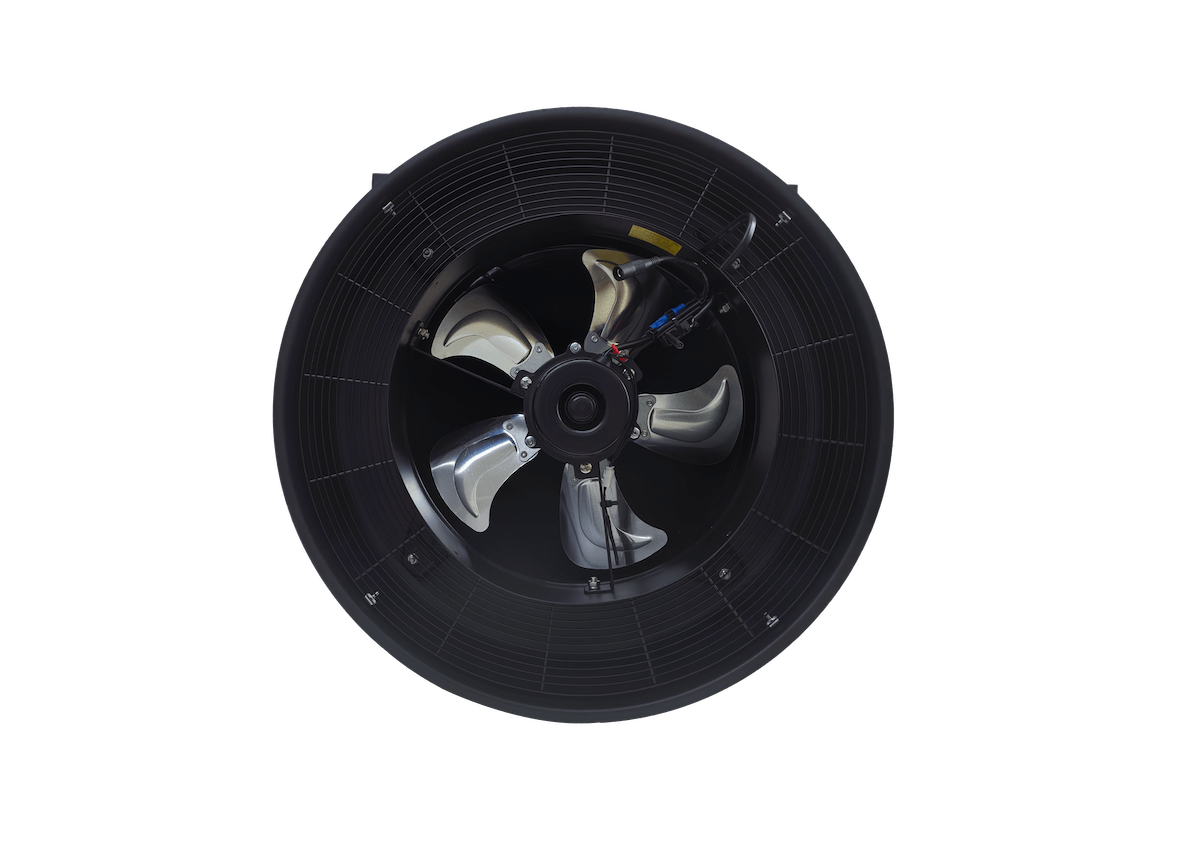

Fan: 300mm Balanced 5x Blade Metal with Low Resistance

Noise: <45dBA

Automatic Shut Off: <25°C +/- 5%

Product Dimensions: 565x565x260mm

Flashing Dimensions: 565x565x1mm

Product Weight: 8.0Kgs

Construction: Aluminium Top Cover, electroplated Steel Body, electroplated Steel Brackets and Stainless-Steel Fasteners

Colour: Black Powder Coated

Packing Dimensions: 580x570x282mm

Packing Weight: 9.6kgs

Warranty: 3 Year Warranty

Optional Power Supply: 15V/1.5A DC, 240AC. 2.5mm DC Jack (max ¾ speed)

Package

  • 1x SolarKing 320mm V4 Wireless Solar Roof Ventilation Fan
  • 1x Colour Gift Box
  • 1x Roof Flashing
  • 1x Instructions
  • 2x Rafter/Batten Metal Straps
  • 1x Wireless Remote

Q&A

Q. Is There a Factory Reset for the V4 Wireless fan?

A. Yes there is, after dark (no daylight at all) remove power to the DC back up (If being used) for 30 seconds (this may mean turning off your mains power) then the unit is reset.


Q. My V4 Wireless fan is not responding to the remote.

A. Pair the remote again. When the unit has solar power or DC back up. Hold the large round key in the middle of the fan speed control for 10 seconds until you hear a long beep. If you have trouble pairing the remote, complete the factory reset first then try to pair again.
